D Series Rotary Screw Compressor
Champion Pneumatic — Fixed Speed Industrial
5–175 HP
Fixed Speed
100% Duty Cycle
Industrial Grade
The Champion D Series fixed speed rotary screw compressor is engineered for industrial applications demanding reliable, continuous-duty air supply. With a 100% duty cycle rating, these units can run around the clock without overheating or performance degradation.

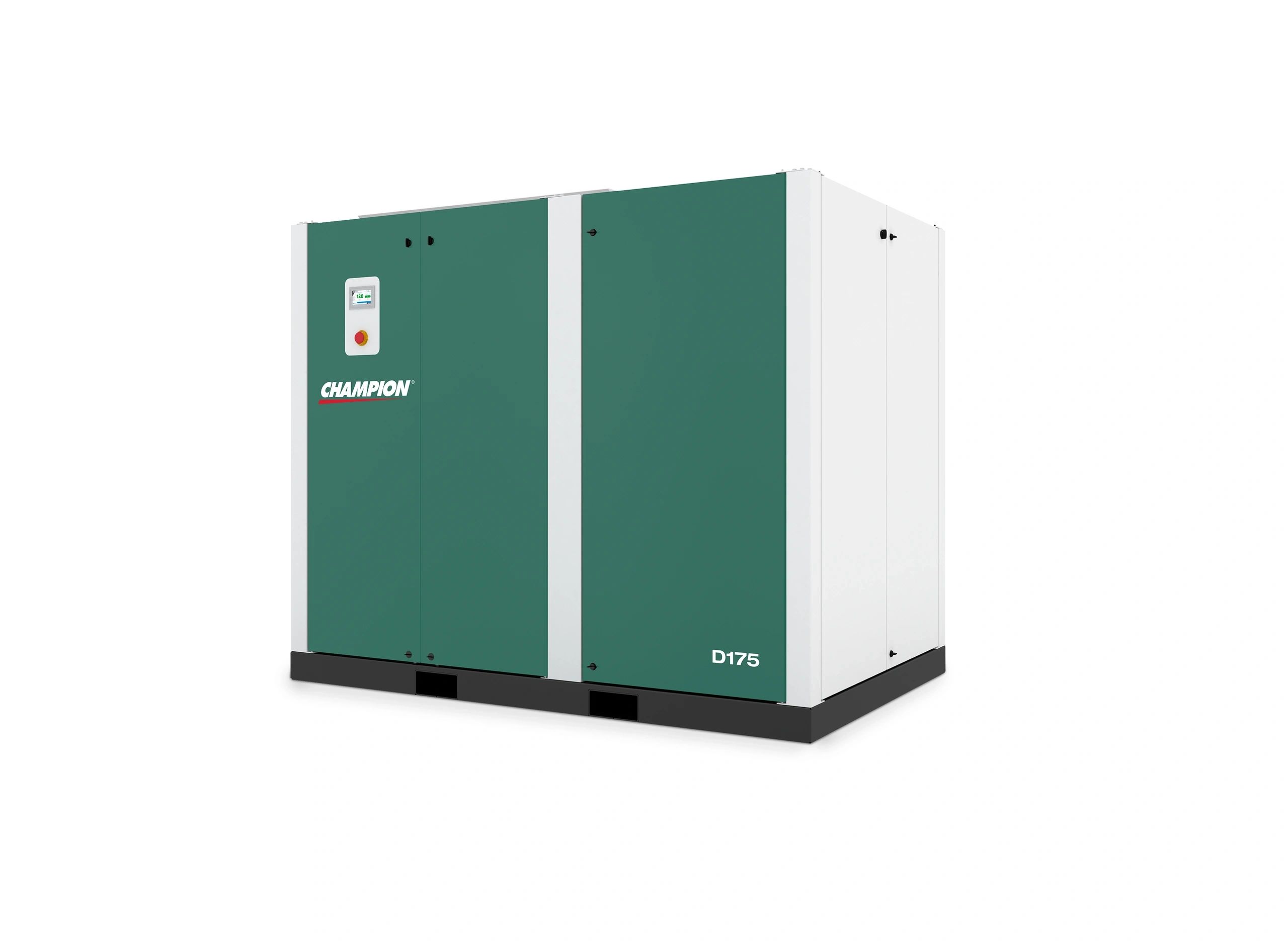

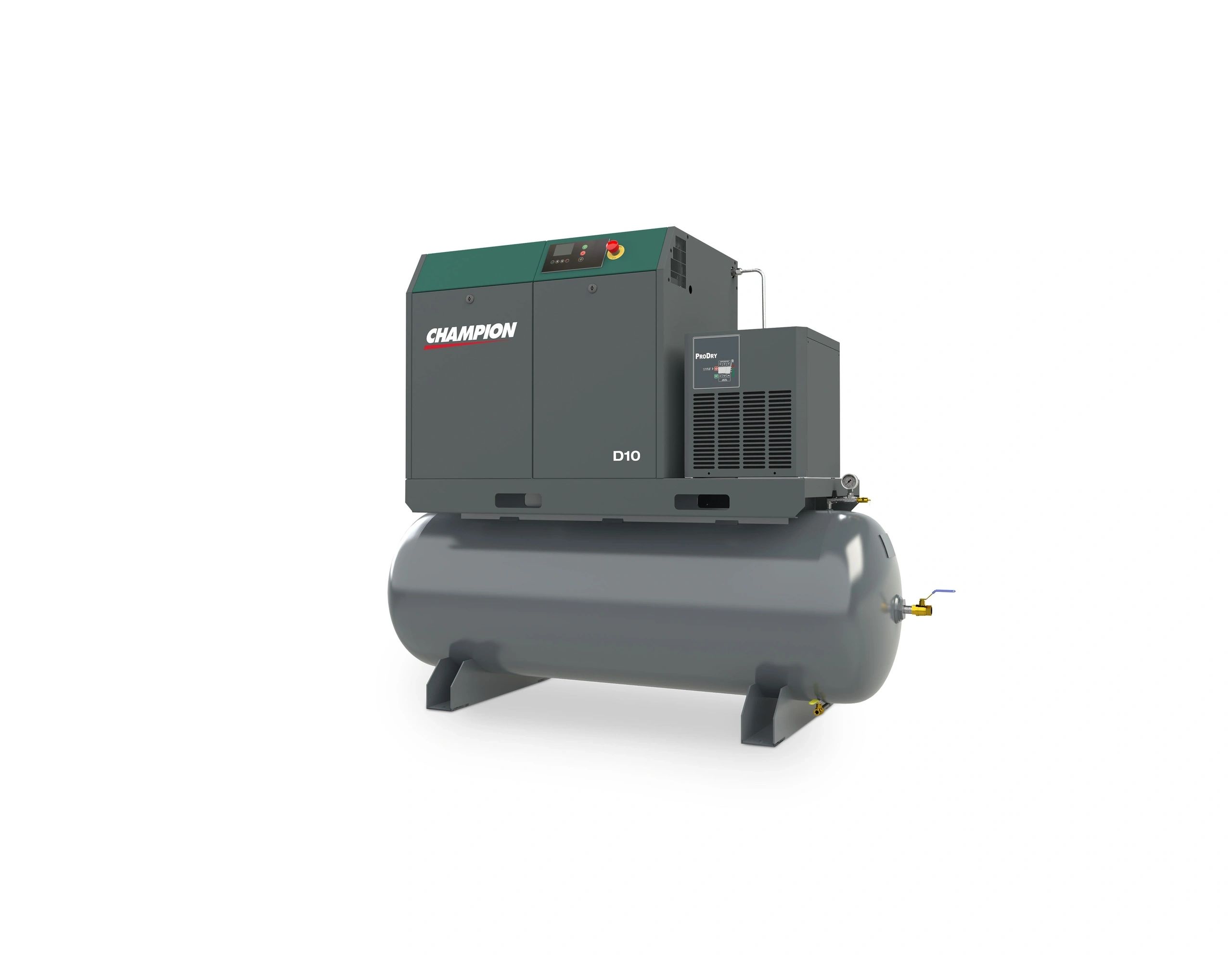

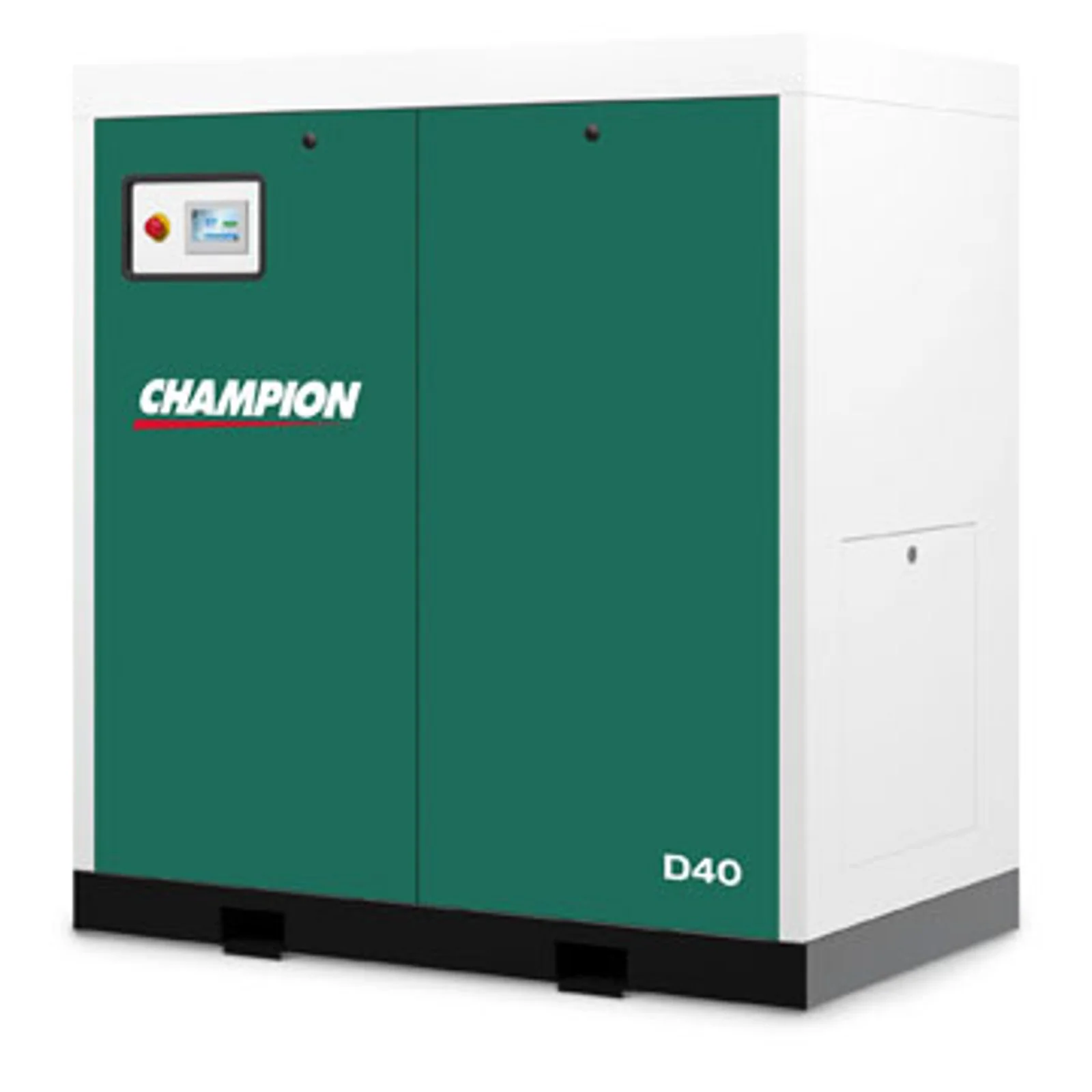

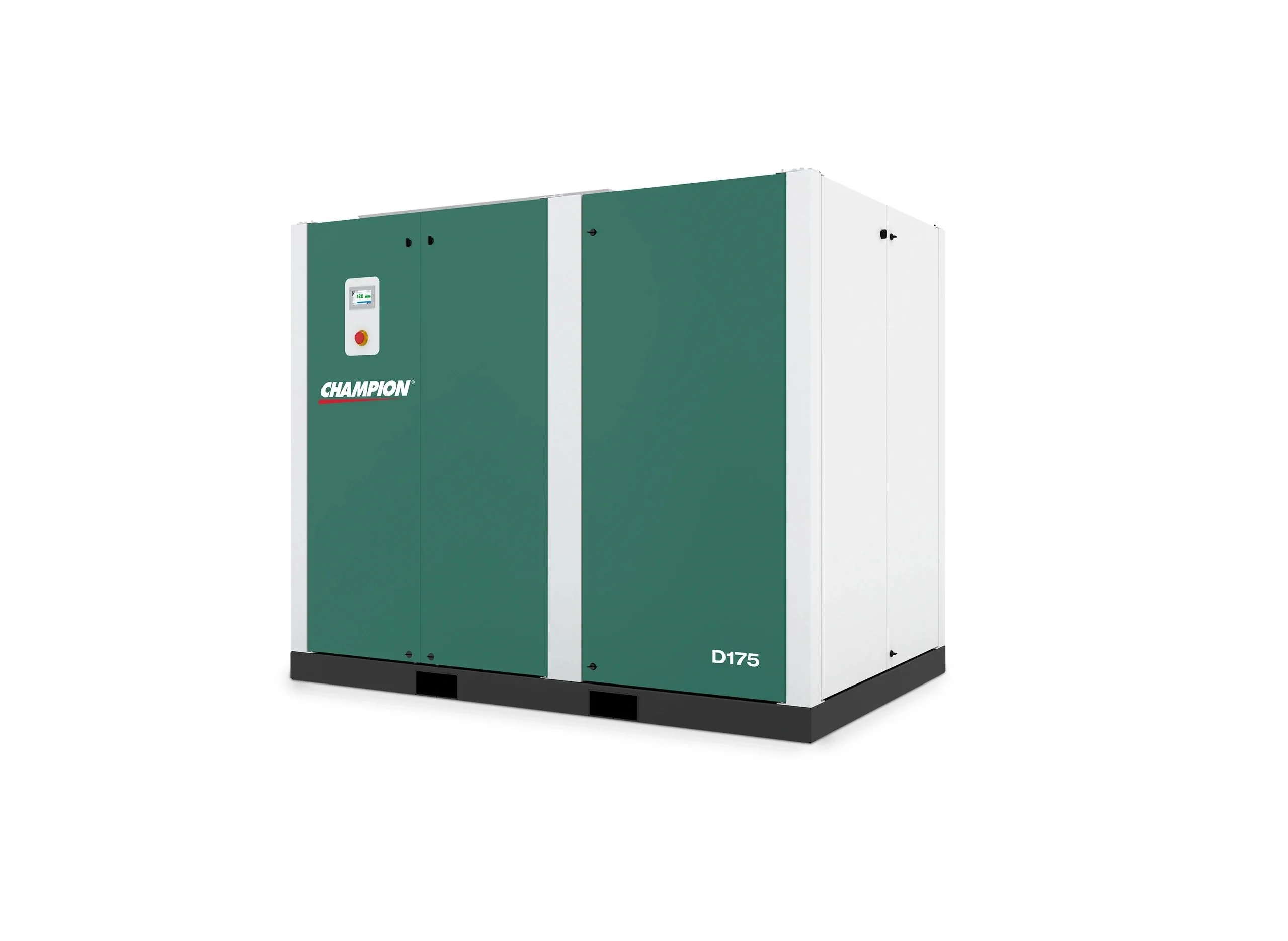

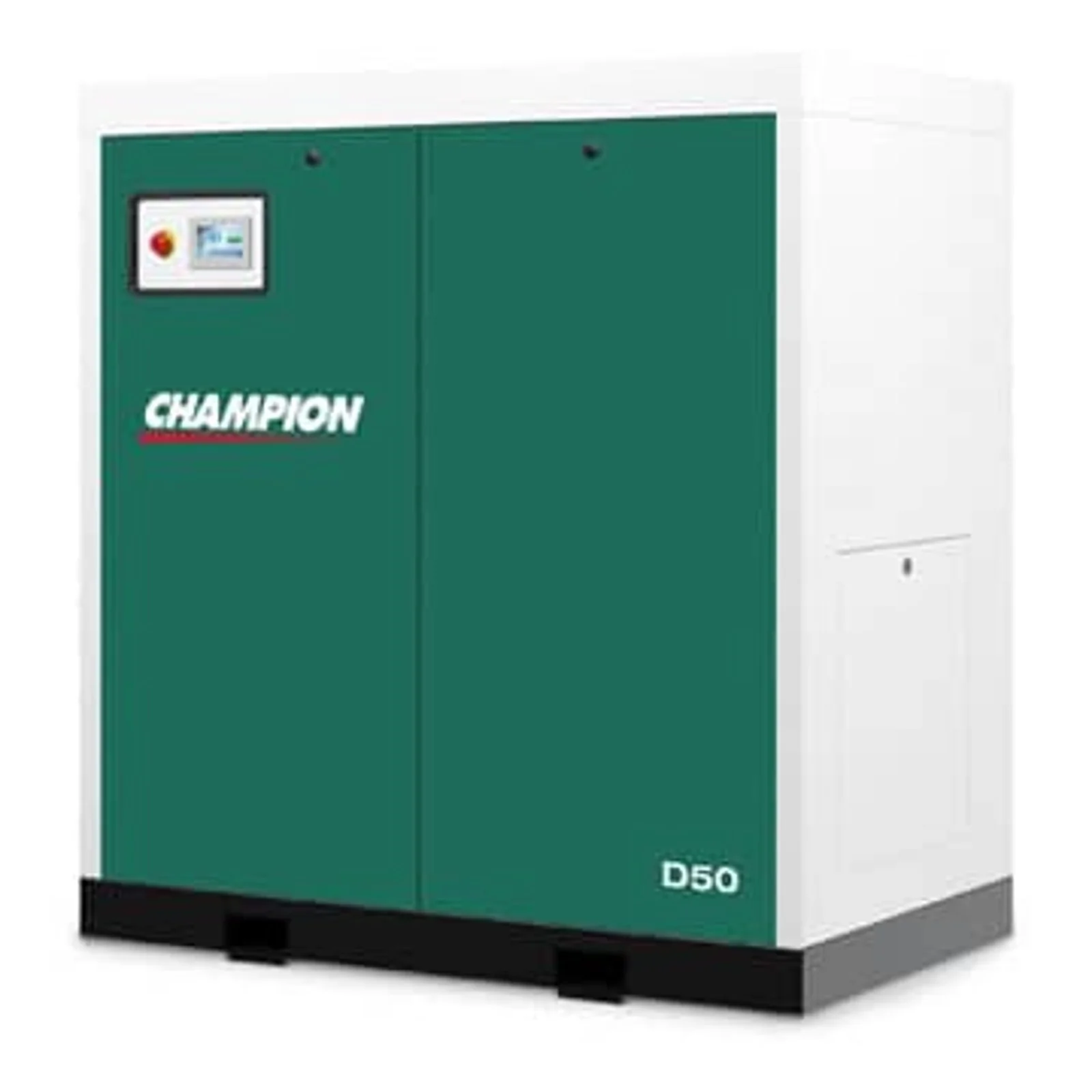

Models are available from 5 to 175 HP in both tank-mounted and base-mounted configurations. The integrated design packages the airend, motor, cooling system, and controls in a compact, sound-attenuated enclosure.
Standard Features
- ✓ 100% continuous duty rated
- ✓ Sound-attenuated enclosure
- ✓ Integrated air/oil separation system
- ✓ Thermostatic bypass valve for oil temperature control
- ✓ Electronic controller with fault diagnostics
- ✓ TEFC motor with Class F insulation
- ✓ Spin-on oil filter and air/oil separator
- ✓ ASME receiver tank (tank-mount models)
D Series Specifications
| Specification | Details |
|---|---|
| HP Range | 5 – 175 HP |
| Type | Oil-flooded rotary screw |
| Drive | Fixed speed belt or direct drive |
| Duty Cycle | 100% continuous |
| Pressure Range | 100, 125, 150, 175 PSI (model dependent) |
| Voltage Options | 230V/3Ph, 460V/3Ph, 575V/3Ph |
| Configurations | Tank-mounted and base-mounted |
| Cooling | Air-cooled with thermal bypass |
