Quick-Lock Aluminum Tubing

Solid aluminum compressed air piping with quick-connect fittings for fast, professional installation. Lightweight, leak-free, and available in 14mm to 63mm diameters with 4 color options.

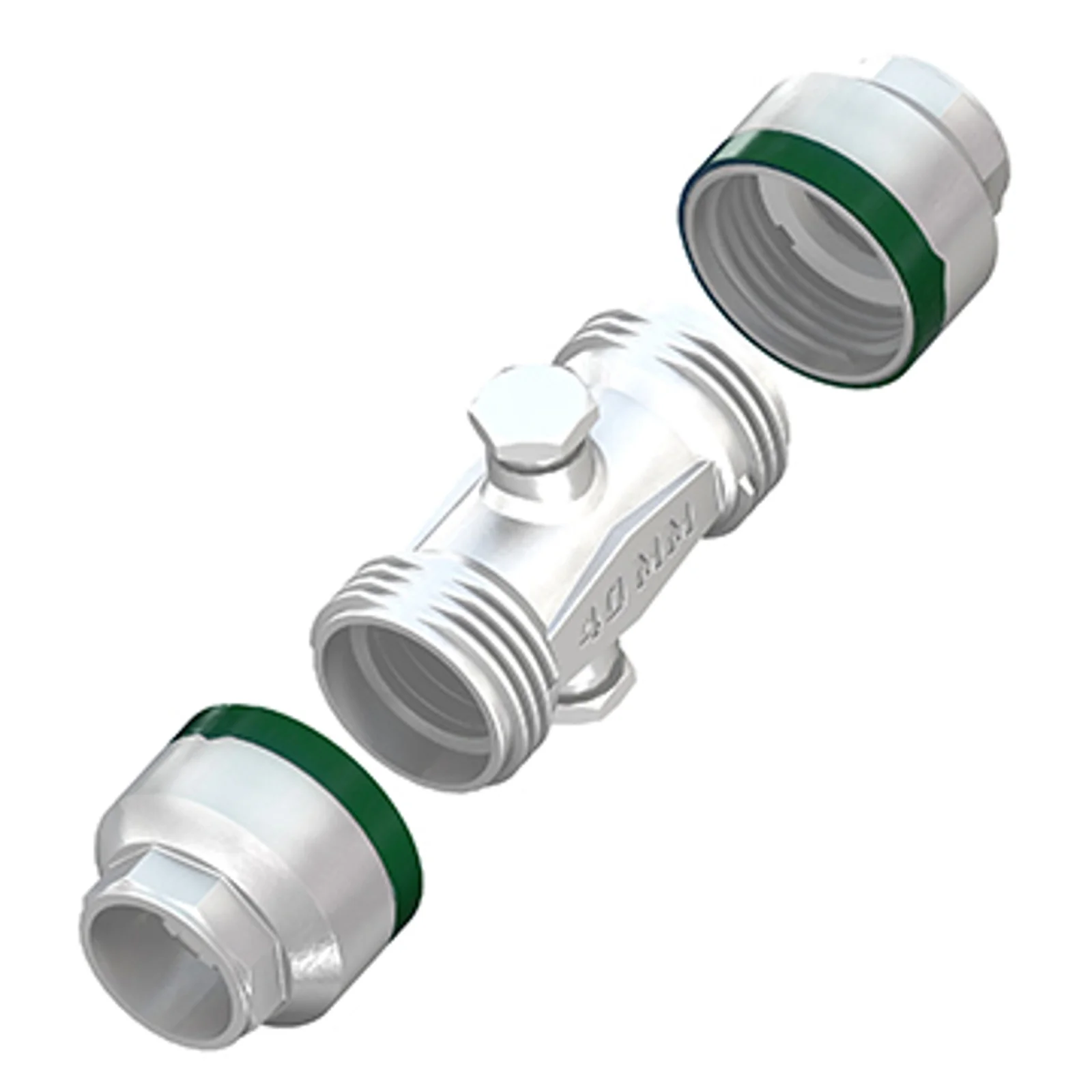

Champion Quick-Lock fitting, exploded view

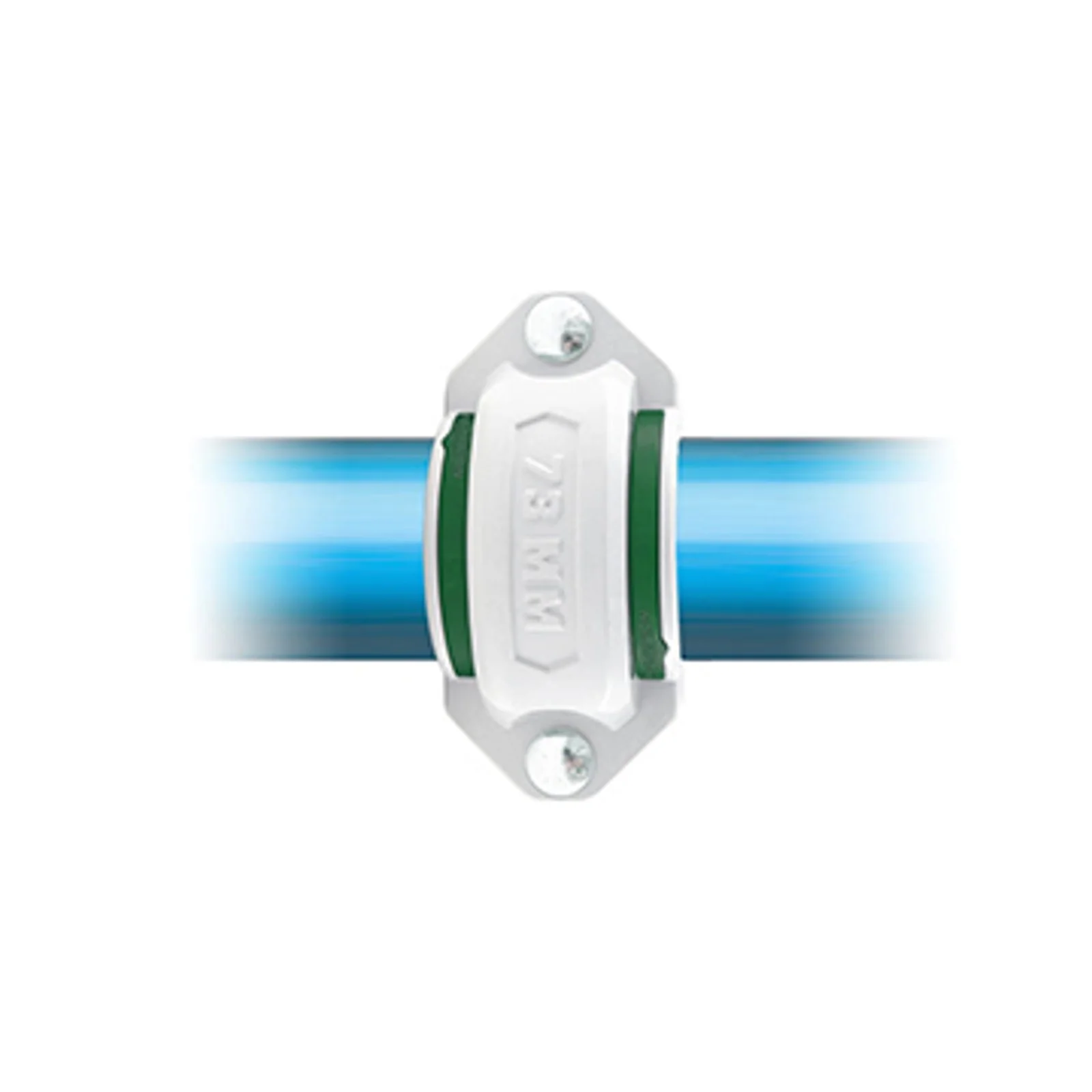

Champion Quick-Lock coupling on aluminum pipe

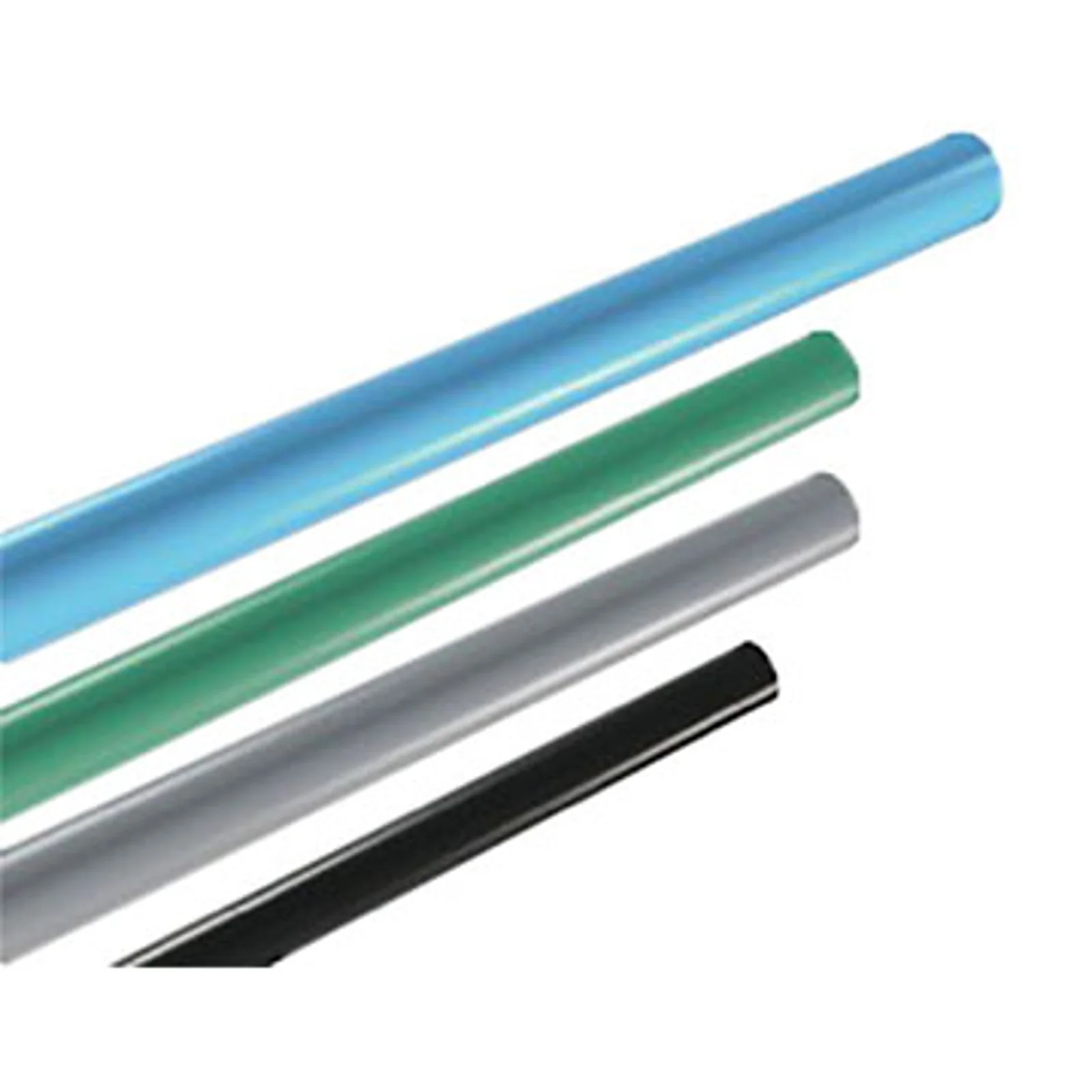

Champion Quick-Lock tubing in blue, green, gray, and black

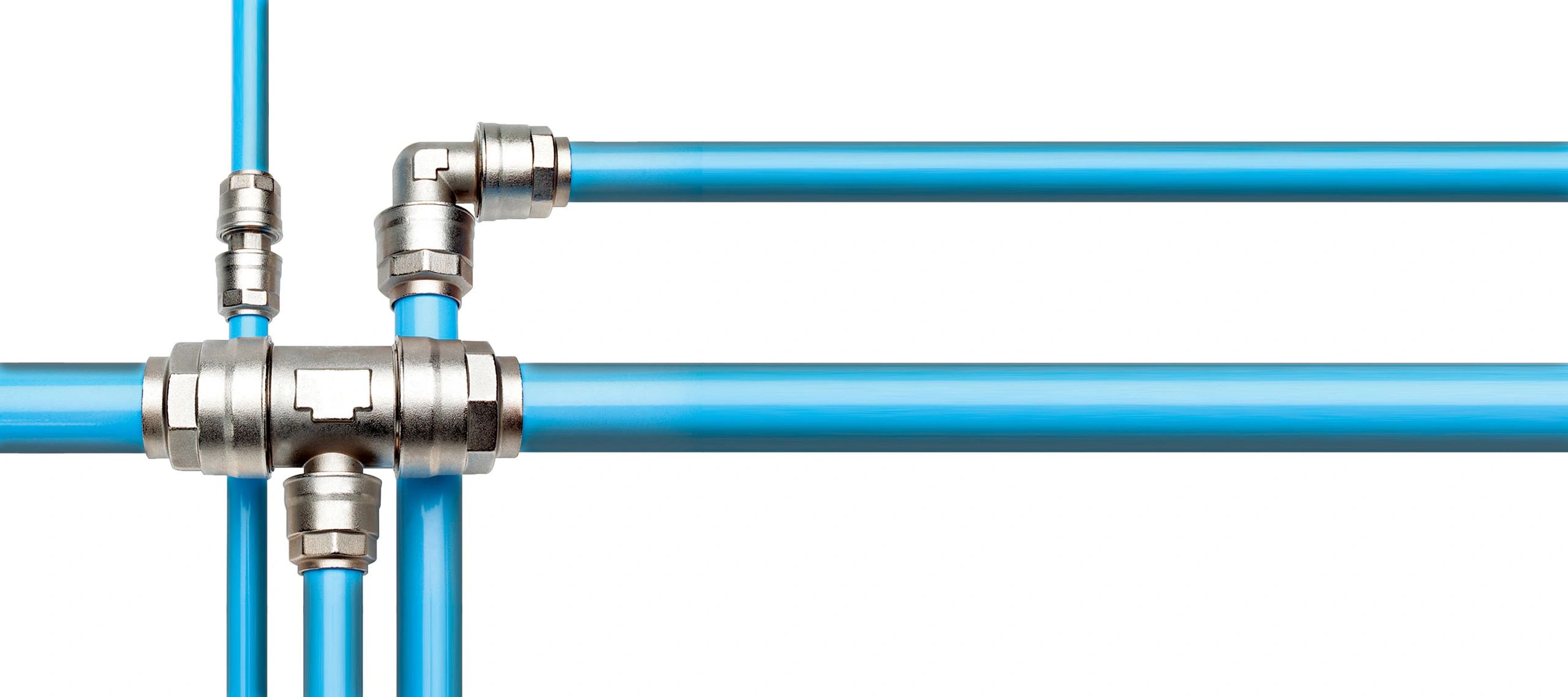

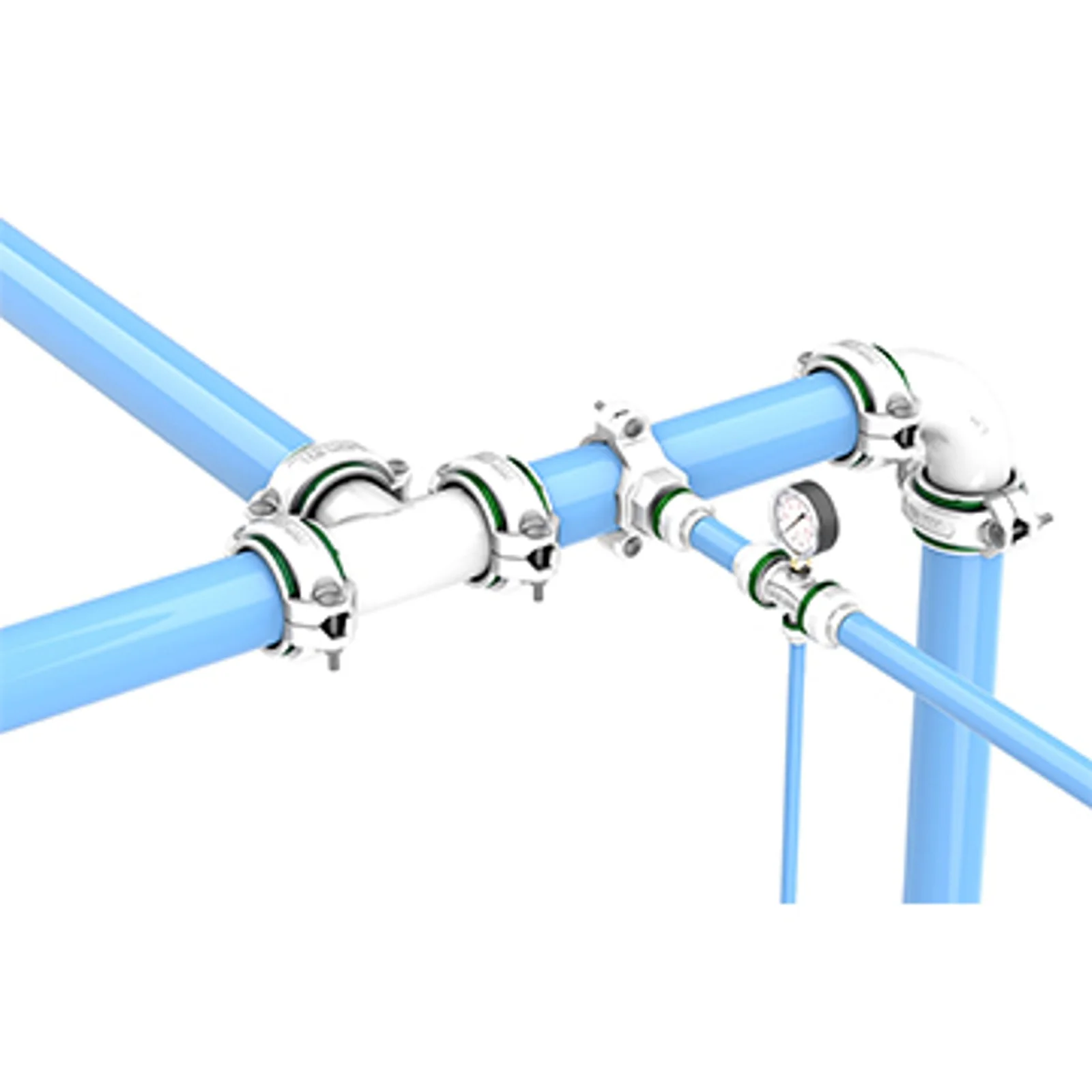

Champion Quick-Lock Compressed Air Piping

Solid aluminum piping with next-generation quick-connect fittings

14mm – 63mm Aluminum Pipe 300 PSI / 300°F Rated 4 Color Options Lifetime Warranty

The Champion Quick-Lock aluminum tubing system is the professional's choice for compressed air distribution. Unlike traditional black iron or galvanized steel pipe, aluminum doesn't rust or corrode, eliminating a major source of compressed air contamination. The quick-connect fitting design dramatically reduces installation time compared to threaded pipe systems, with no welding, gluing, or threading required.

Available in four colors (blue, green, gray, and black), the Quick-Lock system also allows for easy color-coding of different gases or air quality levels within a facility.

Download Brochure (PDF) Request a Quote

System Features

✓ Lightweight aluminum pipe, no rust, no corrosion
✓ Leak-free quick-connect fittings rated to 300 PSI and 300°F
✓ Available in 14mm, 20mm, 25mm, 32mm, 40mm, and 63mm diameters
✓ Four color options: blue, green, gray, and black
✓ Complete fitting range: elbows, tees, reducers, end caps, drop outlets
✓ Compatible with standard NPT fittings for easy integration
✓ Smooth interior bore for maximum flow efficiency
✓ Lifetime warranty on all piping and fittings

System Benefits

✓ Dramatically faster installation than threaded pipe systems
✓ Leak-free connections, no thread tape or pipe dope required
✓ Eliminates contamination from rust and scale
✓ Easy system expansion or reconfiguration
✓ Professional appearance, clean, industrial aesthetic
✓ Color coding supports multiple gas line management
✓ Lower total installed cost vs. black iron pipe
✓ E&M provides professional installation services

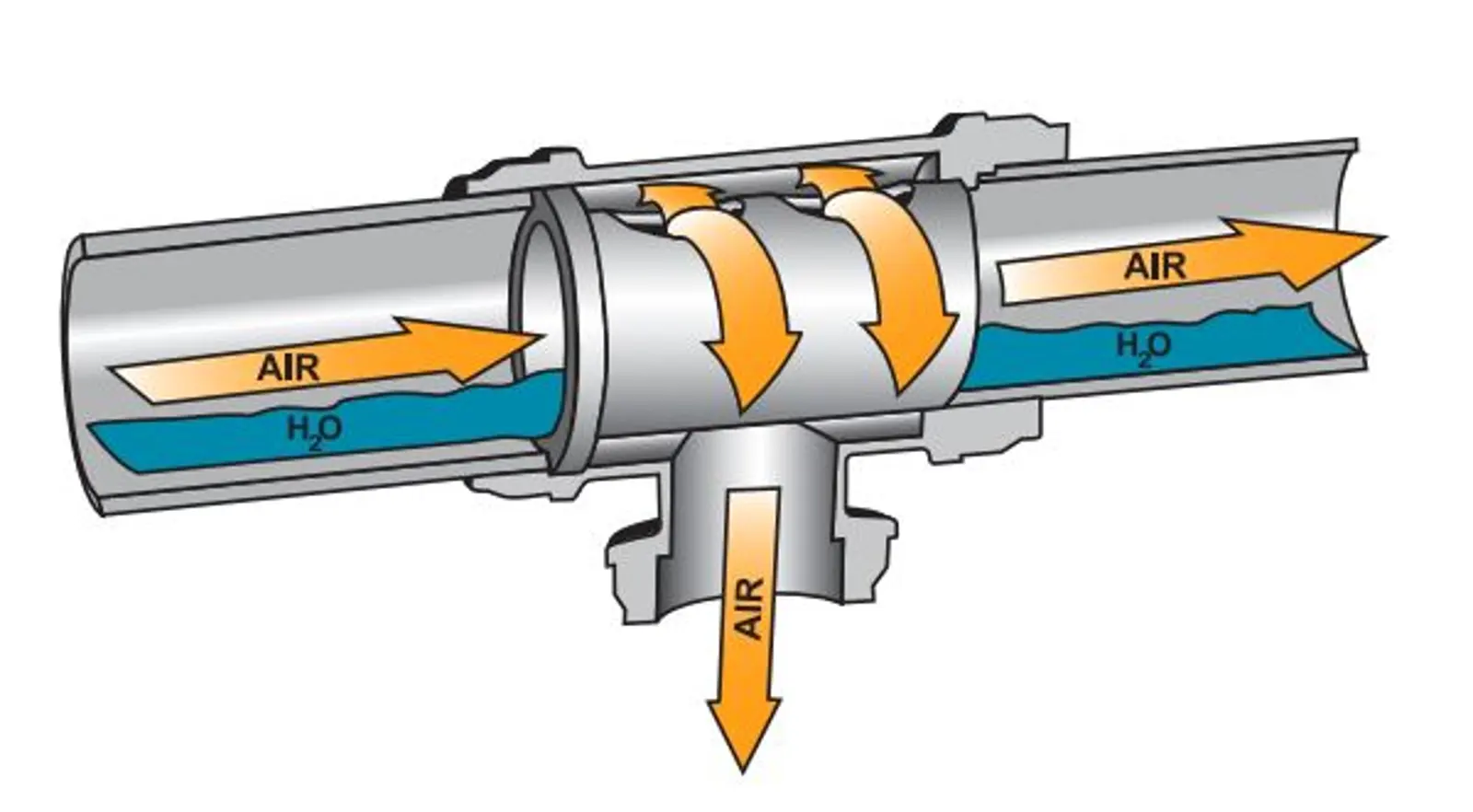

Cutaway diagram of a Quick-Lock drop tee: air exits from the top of the pipe while water stays at the bottom
