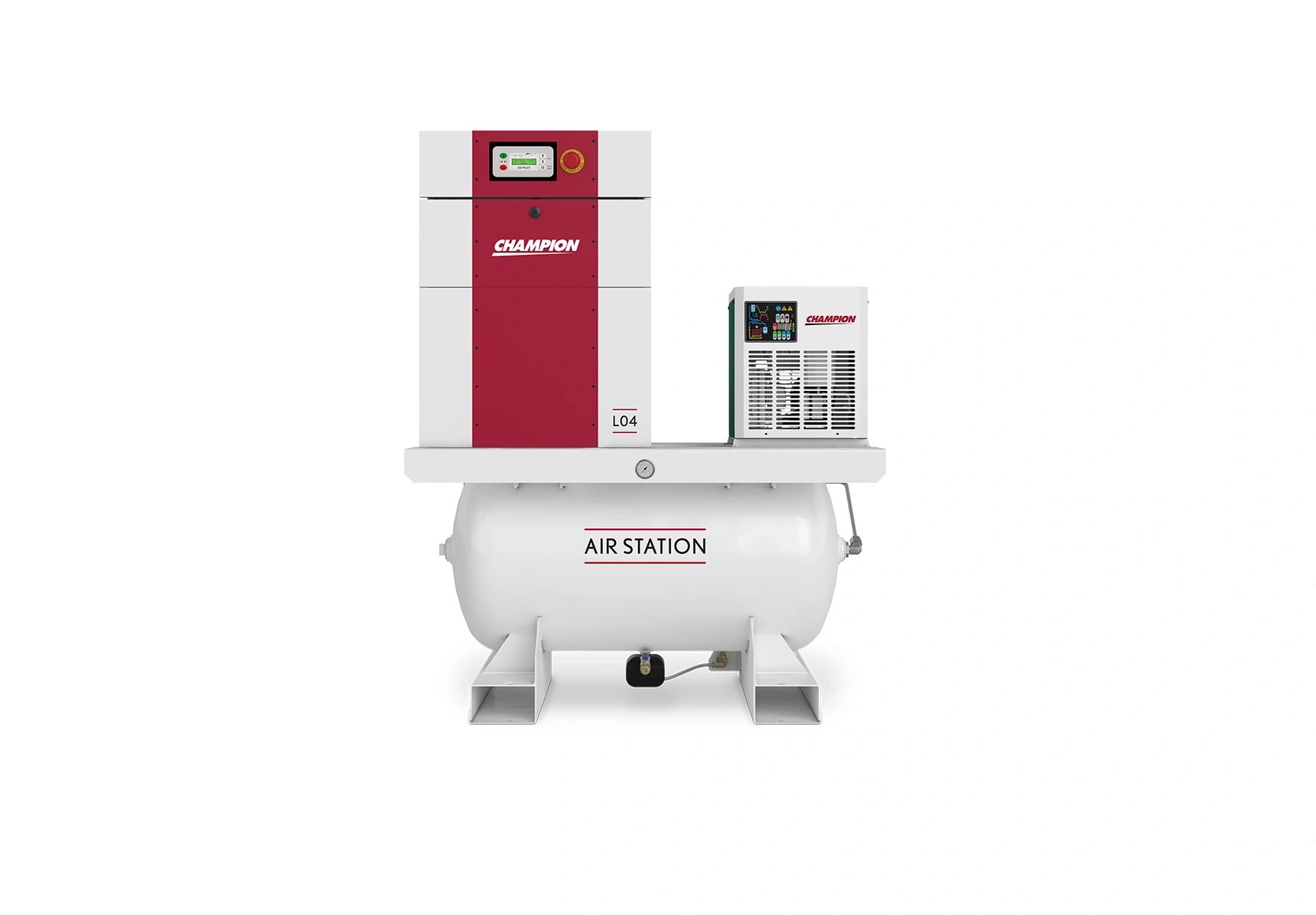

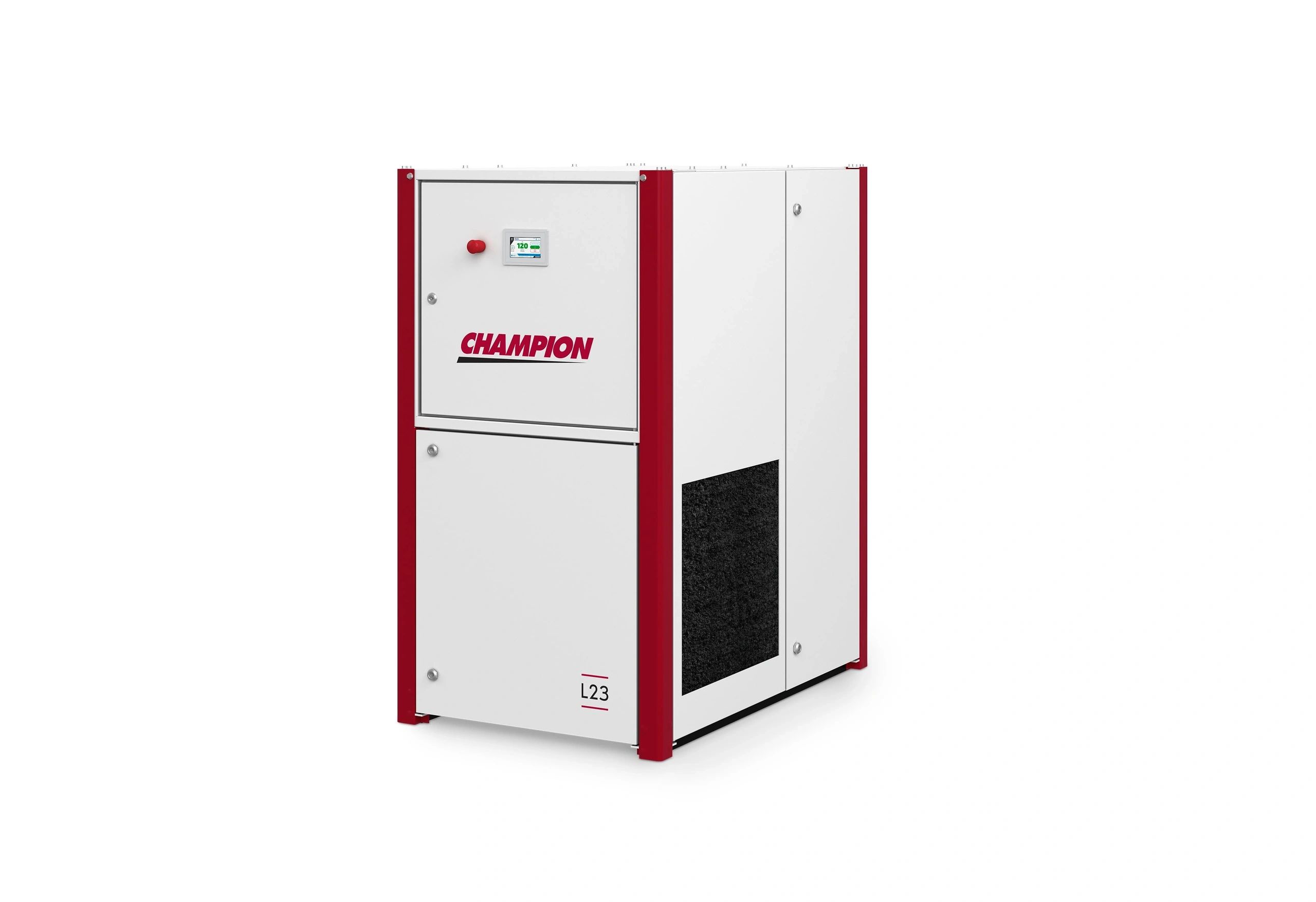

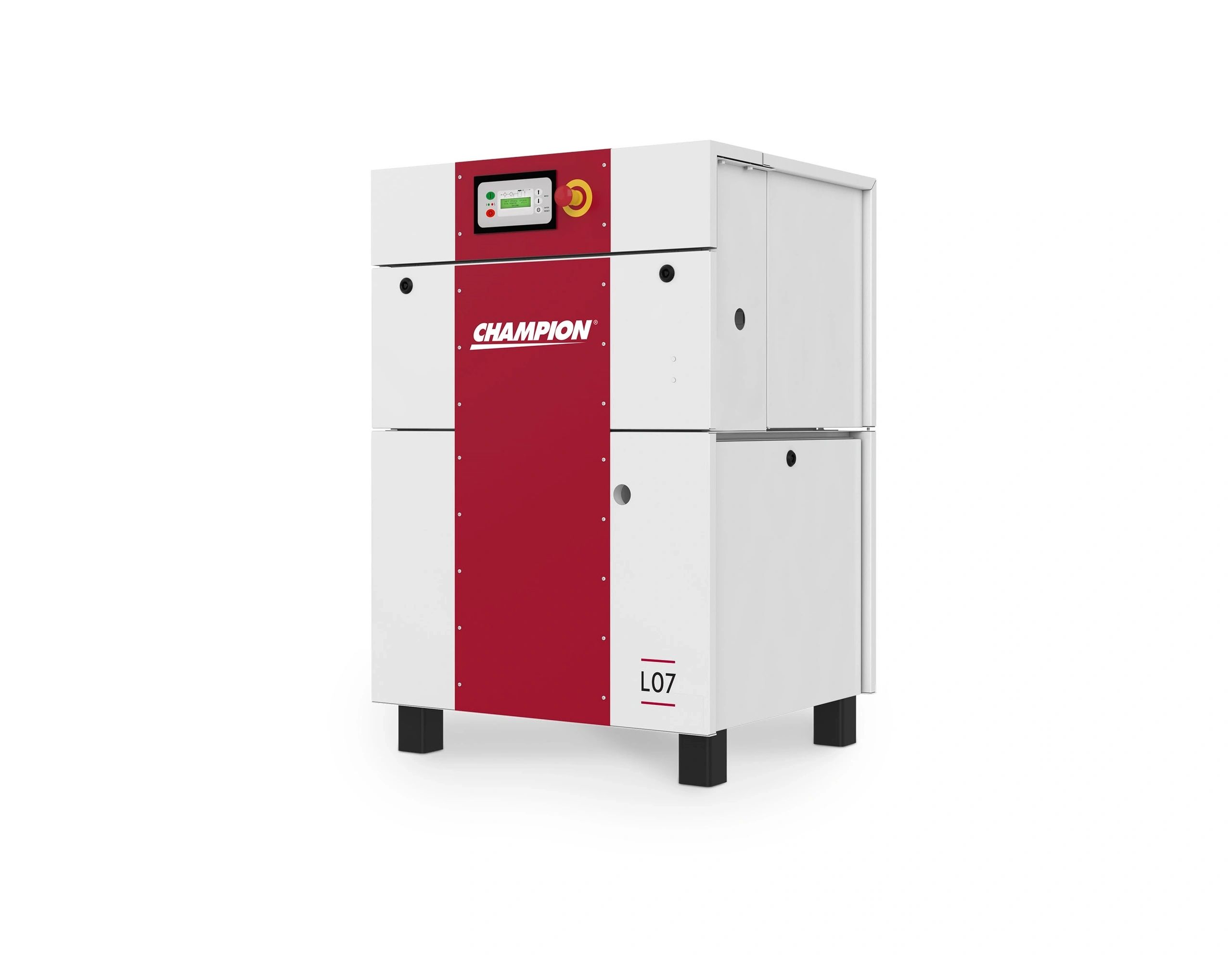

L Series Compact Rotary Screw
Champion Pneumatic — Compact Fixed Speed
5–40 HP
Fixed Speed
Compact
Tank Mounted
The Champion L Series brings rotary screw technology to smaller facilities where space is at a premium. The compact, all-in-one tank-mounted design packages the airend, motor, cooler, separator, and controls in one unit — minimizing installation complexity and floor space requirements.
Designed for operations transitioning from reciprocating compressors to rotary screw technology, the L Series delivers the quiet, continuous operation of a rotary screw unit in a size that fits through standard doorways and into tight mechanical rooms. Available 5 to 40 HP.
Standard Features
- ✓ Compact tank-mounted all-in-one design
- ✓ 100% continuous duty rated
- ✓ Sound-attenuated enclosure
- ✓ Integrated oil/air separator
- ✓ Electronic controller with hour meter and diagnostics
- ✓ ASME receiver tank
- ✓ Air-cooled aftercooler and oil cooler
L Series Specifications
| Specification | Details |
|---|---|
| HP Range | 5 – 40 HP |
| Type | Oil-flooded rotary screw, fixed speed |
| Drive | Belt drive |
| Duty Cycle | 100% continuous |
| Pressure Options | 100, 125, 150 PSI |
| Voltage Options | 230V/3Ph, 460V/3Ph |
| Configuration | Tank-mounted, vertical |
| Cooling | Air-cooled |
