PL Series Reciprocating Compressor
Champion Pneumatic — Pressure Lubricated
3–30 HP
Pressure Lubricated
Extended Pump Life
Heavy Duty
The Champion PL Series uses a pressure lubrication system — the same technology found in automotive engines — to deliver oil under pressure to all critical bearing surfaces. This results in dramatically extended pump life compared to splash-lubricated designs, making the PL Series ideal for high-duty-cycle applications.

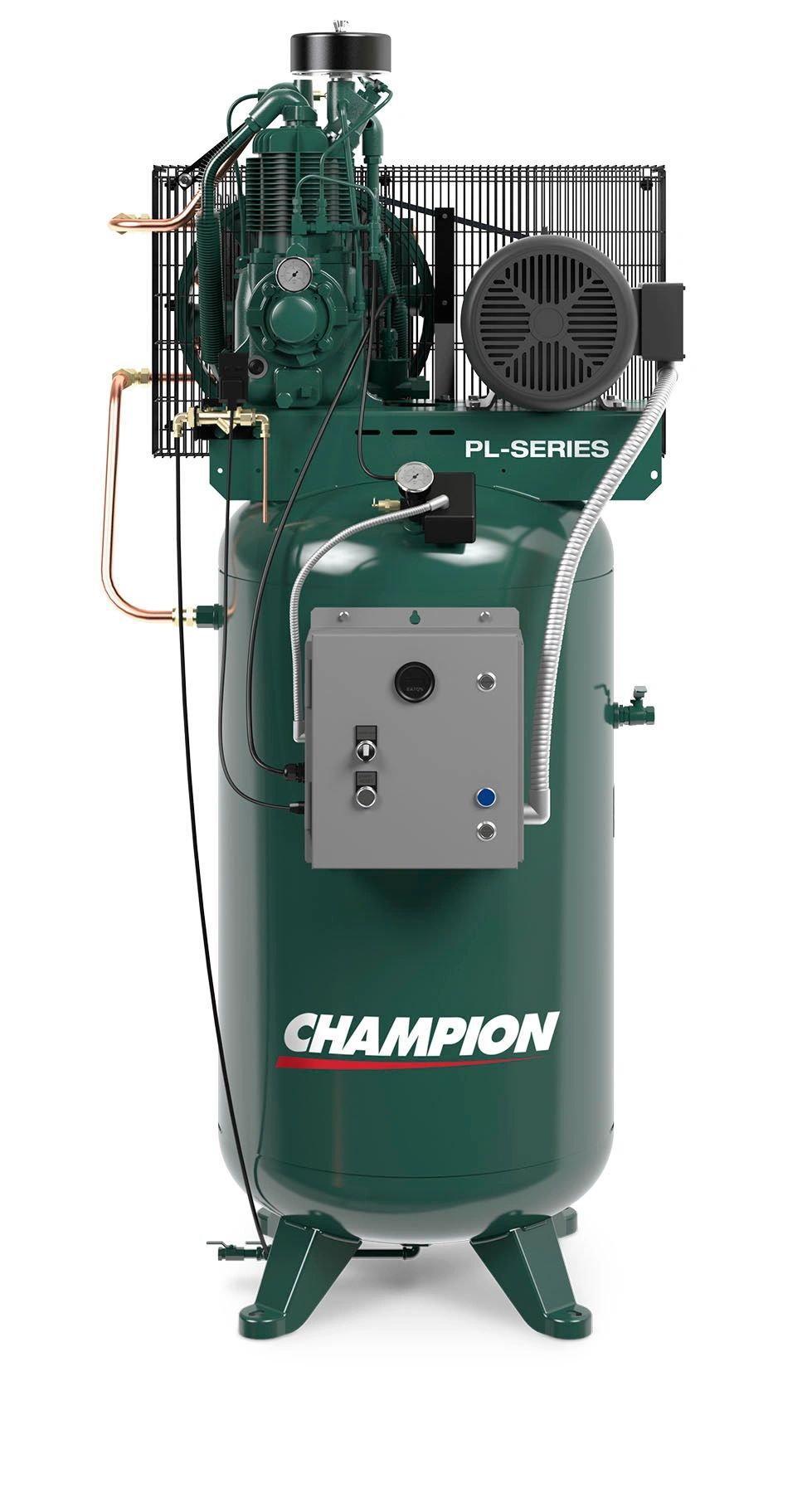

Available in horizontal (HPL) and vertical (VPL) configurations ranging from 3 to 30 HP. Single and three-phase power options available for compatibility with virtually any facility electrical system.
Standard Features
- ✓ Pressure lubrication system for all critical bearings
- ✓ All-cast-iron pump construction
- ✓ Low RPM operation for maximum pump longevity
- ✓ ASME-coded receiver tank
- ✓ Magnetic starter (three-phase models)
- ✓ Oil pressure gauge and low-oil shutdown
- ✓ Pressure switch with unloader valve
- ✓ Safety valve and belt guard
PL Series Specifications
| Specification | Details |
|---|---|
| HP Range | 3 – 30 HP |
| Pump Type | All-cast-iron, pressure lubricated |
| Lubrication | Pressure lubricated (full-pressure oil pump) |
| Voltage Options | 230V/1Ph, 230V/3Ph, 460V/3Ph |
| Configurations | Horizontal (HPL) and Vertical (VPL) |
| Tank Sizes | 80, 120, 200 gallon (model dependent) |
| Max Pressure | 175 PSI |
| Tank Standard | ASME coded receiver |
