RV Series Reciprocating Compressor
Champion Pneumatic — Premium Cast Iron
2–15 HP
Cast Iron Pump
Centurion II
Extended Service Intervals
The Champion RV Series represents the premium tier of Champion's reciprocating compressor lineup. Featuring the Centurion II all-cast-iron pump with extended valve service intervals, the RV Series is engineered for operations that demand maximum longevity and minimal maintenance downtime.

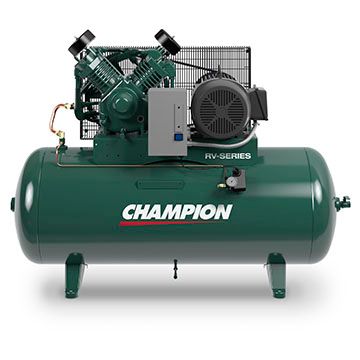

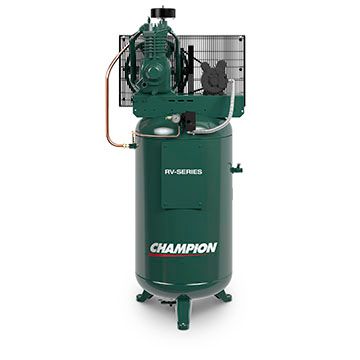

Available in vertical (VRV) and horizontal (HRV) tank configurations, with single and three-phase power options. The cast iron construction provides superior heat dissipation and longer component life compared to aluminum or semi-iron alternatives.
Standard Features

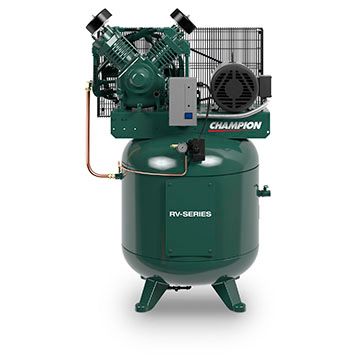

- ✓ Centurion II all-cast-iron pump
- ✓ Extended valve service intervals
- ✓ Splash lubrication with oil sight glass
- ✓ ASME-coded receiver tank
- ✓ Magnetic starter (three-phase)
- ✓ Low-RPM operation for reduced noise and heat
- ✓ Pressure switch with unloader valve
- ✓ Auto drain valve available as option
RV Series Specifications
| Specification | Details |
|---|---|
| HP Range | 2 – 15 HP |
| Pump | Centurion II all-cast-iron, twin cylinder |
| Lubrication | Splash lubricated, oil sight glass |
| Voltage Options | 115V/1Ph, 230V/1Ph, 230V/3Ph, 460V/3Ph |
| Configurations | Vertical (VRV) and Horizontal (HRV) |
| Tank Sizes | 60, 80, 120 gallon (model dependent) |
| Max Pressure | 175 PSI |
| Tank Standard | ASME coded receiver |
